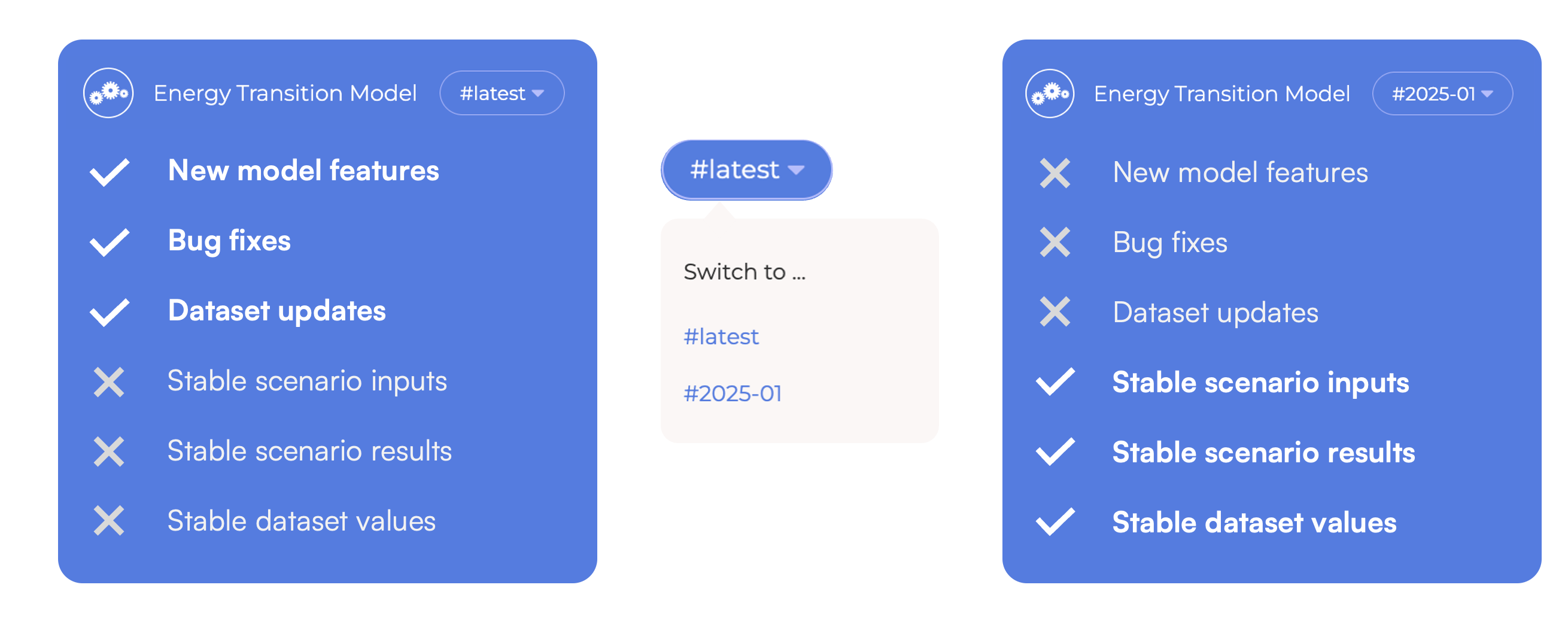

What’s new in the Energy Transition Model?
Local forecasting for household batteries
You can now choose two types of forecasting for household batteries. The first is the existing system forecasting algorithm, which is available for all electricity storage technologies. The second is a new local forecasting algorithm. Instead of all the electricity demand and supply in a region, it only tries to match household electricity demand and supply. Both types of forecasting have a different impact on the electricity grid. Try it for yourself in the Flexibility section.
Input capacity for load shifting
Demand-side response in the industry has been updated. When applying load shifting in an industry sector, it is now possible to set the available capacity to increase the load seperately from the capacity to decrease the load. This makes it possible to reduce the impact of the increased load on the electricity grid. It can be found in the Flexibility section.
Many regions deal with energy flows that merely pass through the region and are not consumed or produced by parts of the local energy system. Users can now gain more insight in these transit flows of energy carriers within their system. In order to model transit flows in your scenario, you can set the inflexible export volumes of several energy carriers. Setting an export flow also enforces an import flow for the system to be balanced.
New charts have been added which give an overview of the transit flows in the energy system. The new features can be found in the Demand section.
It is also possible to model a transit flow for CO2 by setting an import flow in Mton. See the Emissions section.
New hydrogen carriers
In addition 2 new hydrogen carriers have been added to the ETM:
Liquid organic hydrogen carriers (LOHC) — LOHCs are substances that can store and transport hydrogen in a liquid form. This form provides a higher energy density compared to gaseous hydrogen.
Liquid hydrogen (LH2) — At extremely low temperatures, hydrogen transitions from gaseous into liquid form. In liquid form it has a much higher volumetric energy density, leading to an advantage in transporting the hydrogen.
This allows for instance to import liquid hydrogen, reform it to produce gaseous hydrogen and export the latter. See the new hydrogen production technologies in the Supply section.
There are a number of significant changes for the modelling of heat in the ETM. The following three main changes have been made.
Temperature levels of district heating
District heating networks on different temperature levels can be specified: high temperature (HT), medium temperature (MT) and low temperature (LT). Each temperature level has distinct heat sources. You can set the demand, supply, storage and transport and losses for each temperature level. The costs of district heating infrastructure have been updated, using values specific for each temperature level. Finally, a number of charts have been added to help you set demand and supply. Explore the new District heating section to find out more.
Now, extra aquathermal technologies have been added to the ETM. Aquathermal refers to using water for heating and cooling. Three types of water reservoirs are taken into account: drink water, surface water and waste water.
Aquathermal technologies can be selected for invidiual residences, both for Space heating & hot water and for Cooling. This also applies to Space heating and Cooling in buildings. Additionally, aquathermal heat can be used in MT and LT district heating. A chart has been added that allows you to see the demand for aquathermal heat and compare it to the potential.
It is now possible to specify exactly the amount of residual heat you want to use in your scenario. You can then compare the demand for residual heat with an estimate of the potential in a new chart. The estimate of the potential depends on the respective size of the industry sectors.
Adjustable specifications of electricity storage technologies
Two specifications of electricity storage technologies can now be customized in the model. The first is the roundtrip efficiency. You can adjust this in Costs & efficiencies → Flexibility → Electricity storage.
You can also change the relative storage volume of each technology in Flexibility → Electricity storage. The relative storage volume specifies how many hours a technology needs to charge at full capacity to go from 0% to 100% charged. Effectively it allows you to change the total installed storage volume for a given installed capacity.
In the table “Electricity storage technologies specifications” you can quickly compare the specifications across technologies:
Local vs. Global tool is discontinued
The Local vs. Global tool is discontinued indefinitely. The tool allowed you to select multiple scenarios and see their combined results on a number of indicators. Though the functionality the tool offered is valuable, the limited scope of its implementation made it no longer worth the effort required to maintain it.
Our ambition is to further build on the Transition Paths tool instead. This tool has recently seen much development and offers a lot of flexibility for users who want to visualise and change multiple scenarios within a single interface. The functionality that the Local vs. Global tool offered may be incorporated in the Transition Paths tool in the future.
If you have any questions about the Local vs. Global tool, or would like to discuss suggestions for the improvement of the Transition Paths tool, please contact Quintel.
New feature for electricity storage technologies
In the Flexibility → Electricity storage section, you can decide for each storage technology whether you want to enable a forecasting algorithm to determine its behaviour.
The technologies for which this forecasting algorithm algorithm is enabled, will consecutively try to flatten the electricity residual load curve. You can now set the order in which these technologies are applied yourself. Go to the Flexibility → Electricity storage → Merit order section to see how.
For more information, go to our documentation.
The Energy Transition Model has a new system for signing in. Aside from a new look to the login and account pages, the ETM should work much as it always has.
The new system allows us to associate your scenarios with your account, ensuring that only you can make changes to them. As before, they will default to being public, allowing other visitors to view and copy your scenarios, but not edit them. If you prefer to keep your scenarios private, you can change the privacy setting in your account settings. Private scenarios can only be viewed by their owner: you.
Alternatively, it is possible to change the privacy setting of individual saved scenarios. To do this, head to your saved scenarios page, click on the scenario you’d like to change, and then on the “Public/Private” dropdown on the right side of the page.
Users of our API can also benefit from the added security provided by authentication by using personal access tokens. You can now list all of your scenarios, delete scenarios, as well as work with saved scenarios and transition paths.
A detailed list of changes is available on our documentation website.
CHPs for local agriculture heat demand
It is now possible to install combined heat and power (CHP) units, that supply heat to meet local demand from agriculture. You can set the share of heat demand that is supplied by these local CHPs in the Demand → Agriculture → Heat section. The capacities of different types of CHPs can then be set in the Demand → Agriculture → Heat from local CHPs section.
Two charts have been added, one that shows you the total local heat supply and demand per year. The other chart (see below) also shows you the electricity flows that are produced by the CHPs.
Electricity storage in electric buses, vans and trucks
As the number of electric vehicles increases, it is becoming increasingly interesting to utilize the batteries that are present in those vehicles during hours when they are not used for transportation. It was already possible to use batteries in electric cars to provide storage services to the electricity grid, and now this is also possible for electric buses, vans and trucks.
Go to the Flexibility → Electricity storage → Batteries in electric vehicles section, to see how you can put these batteries to use. The total available battery storage volume does depend on the number of electric vehicles in your scenario, which you can determine in the Demand → Transport section.
In the ‘See more charts’ pop-up, you can now choose to load multiple charts at once. With a single click on ‘System overview’ you will open a predetermined selection of charts and tables that provide you a full overview of your energy system.
If you would like to add another set of charts, please contact Quintel.
Bio-ethanol for inland shipping
Currently, ships for inland waterway transport are often fitted with conventional diesel engines. Advanced multifuel diesel engines are being developed that can run on a range of fuels, including bio-ethanol. You can set the share of diesel engines in Demand → Transport → Freight transport. You can then add bio-ethanol by changing the fuel mix of these engines in Supply → Transport fuels → Domestic navigation.
Hydrogen use in the industrial heating network
Two new technologies have been added that can supply steam to the industrial heat network. You can now install capacity for a hydrogen turbine CHP, which produces both steam and electricity, and for a hydrogen heater, which only produces steam. Go to Demand → Industry → Steam network sources to check it out.
First Asian country is now available: Singapore
A few weeks ago Singapore has been added to the ETM as the first city-state and the first Asian country. This also means it is now easier to add countries outside of the EU to the ETM. Select Singapore as a region when starting a new scenario to start exploring its energy system!
Addition of ammonia
Shipping of liquified green ammonia (and then reforming it to hydrogen) is seen as a more practical option for importing large amounts of green hydrogen than transporting the hydrogen directly. The possibility to import ammonia and convert it to hydrogen using a reformer has therefore been added to the model.
Addition of Autothermal reforming
A new hydrogen production technology has been added to the model: Autothermal reforming (ATR). This is a proven technology that uses natural gas to produce hydrogen. You can set its installed capacity in Supply → Hydrogen → Hydrogen production.
The main benefit of ATR compared to the common hydrogen production technology Steam methane reforming (SMR), is that it allows for the capture of a higher share of CO2 emissions. You can add carbon capture for the ATR in Emissions → CCUS → Capture of CO2.
New CO2 intensity of hydrogen chart
A new chart that allows you to compare the CO2 intensity of different hydrogen production routes have been added to the model. You can select the chart from the chart selection or go to Supply → Hydrogen → CO2 emissions of imported hydrogen.
New electricity mix for power-to-gas chart
Another useful chart has been added. This chart shows you the electricity mix used to produce hydrogen through electrolysis, also known as power-to-gas. You can select the chart from the chart selection or go to Flexibility → Electricity conversion → Conversion to hydrogen.
Analysis of the need for flexibility
For the gaseous carriers hydrogen and network gas, hourly balancing of supply and demand is performed by storage. There are however technical and economical limitations to the extent to which storage volume can be realized in an area. This is especially relevant when different types of large-scale underground storage are required. Some storage may be required to handle short-term variations in supply and demand, while additional storage volume may be necessary to deal with long-term seasonal variations.
A new section and table have been added that can help you assess the different storage needs. You can find them in Flexibility → Overview → The need for flexibility: timescales.
New transport technologies for ships and planes
For domestic navigation, also known as inland shipping, it is now possible to switch to electric ships. You can determine the share of electric ships in the total transportation by domestic navigation in Demand → Transport → Freight transport → Domestic navigation technology.
For domestic aviation technology, or more simply put, plane transport, two new technologies have been added to the model. In addition to kerosene, gasoline and bio-ethanol, you can switch to either electricity or hydrogen. Go to Demand → Transport → Passenger transport → Domestic aviation technology to check it out.
New heating technologies in agriculture
In the agriculture sector, you can now choose to install a water heat pump. This is an electric water-water heat pump that uses a water reservoir as its heat source. Only a small amount of electricity is then still required to bring the water to the desired temparature, making it much more efficient than a simple electric boiler. You can find the heat pump in Demand → Agriculture → Heat.
In the same section, you can now also install power-to-heat capacity for agriculture. This is an electric boiler that is fitted to existing natural gas or hydrogen heaters, making them hybrid heaters. The hybrid heater uses electricity when the electricity price is below the maximum willingness to pay. If the electricity price exceeds the willingness to pay, the heater switches to its original fuel source (either gas or hydrogen). You can set this willingness to pay in Flexibility → Electricity conversion → Conversion to heat for agriculture.
Update of the transition path charts tool
The transition path charts tool has had a significant update. With this tool you can open one of your scenarios and explore what happens between the start and end year. You can easily make changes to the slider settings for various intermediate years and thereby shape the transition path towards the future.
The update includes an improved interface, various new charts that now allow you to toggle between area and bar charts, a table view underneath the charts and the possibility to easily export data as CSV files. Check out the updated tool here!
Addition of small modular nuclear reactors
A new type of nuclear power plants has been added to the model: small modular reactors. This novel technology is now available next to the existing large reactor 2nd and 3rd generation nuclear power plants. Go to Supply → Electricity → Nuclear plants to add them to your scenario.
Load shifting in the central ICT sector
Load shifting is a form of demand side response where electricity consumers can choose to delay their electricity demand. In hours where the electricity price is deemed too high, these consumers will reduce their demand. When the price drops again, they will then compensate for the accumulated deficit by increasing their demand.
This form of demand side response was already available for the metal, chemical, and other industry. It is now also available for the central ICT sector, which covers data centers, telecom, and other information and communication services. You can add load shifting for the central ICT under Flexibility → Net load → Demand response - load shifting in industry.
Hydrogen-powered ships are now available as a technology in the transport sector. Hydrogen can be used as a fuel for inland shipping, also known as domestic navigation. Go to the Demand → Transport → Freight transport section to check it out. It can also be used as a fuel for maritime shipping, or international navigation, which you can set at the Demand → Transport → International transport section.
Hybrid hydrogen heatpump for buildings
In addition to a hybrid heatpump that uses gas, it is now also possible to heat the buildings in your scenario with a hybrid heatpump that uses hydrogen. You can find this new heating technology in the Demand → Buildings → Space heating section.
Additions and improvements for EU countries
With the inclusion of Cyprus, Estonia and Malta, all countries of the EU are now included in the ETM! You can check out these countries by selecting one of them in the region dropdown when starting a new scenario.
The base year data for these countries origins mainly from the Eurostat Energy Balances 2019 and JRC Potencia tool. For a complete overview of all data that is used, have a look at ETM Dataset Manager. The final energy demand for these EU countries was matched as much as possible to the Eurostat Energy Balances. The supply side (heat and electricity production) is more complex and has some room for improvement. Feel free to contact us with suggestions using the Contact form.
Freight transport by vans
Instead of being included in truck transport, vans are now shown in the model as a separate category of their own. This enables you to make different choices for developments in trucks and vans technologies and their use in the Demand → Transport → Freight transport section!
Explore Demand Side Response in industry
You can now explore the effects of Demand Side Response in the industry on sub sector level in the Flexibility section, under Net Load.
Capacity to shift the electricity demand can be installed for the metal, chemical, and other industry. In hours when the electricity price is too high, the sector will then be able to decrease its demand. The shortage that accumulates during those hours is caught up at a later time, when the electricity price is lower, thereby saving costs for industry.

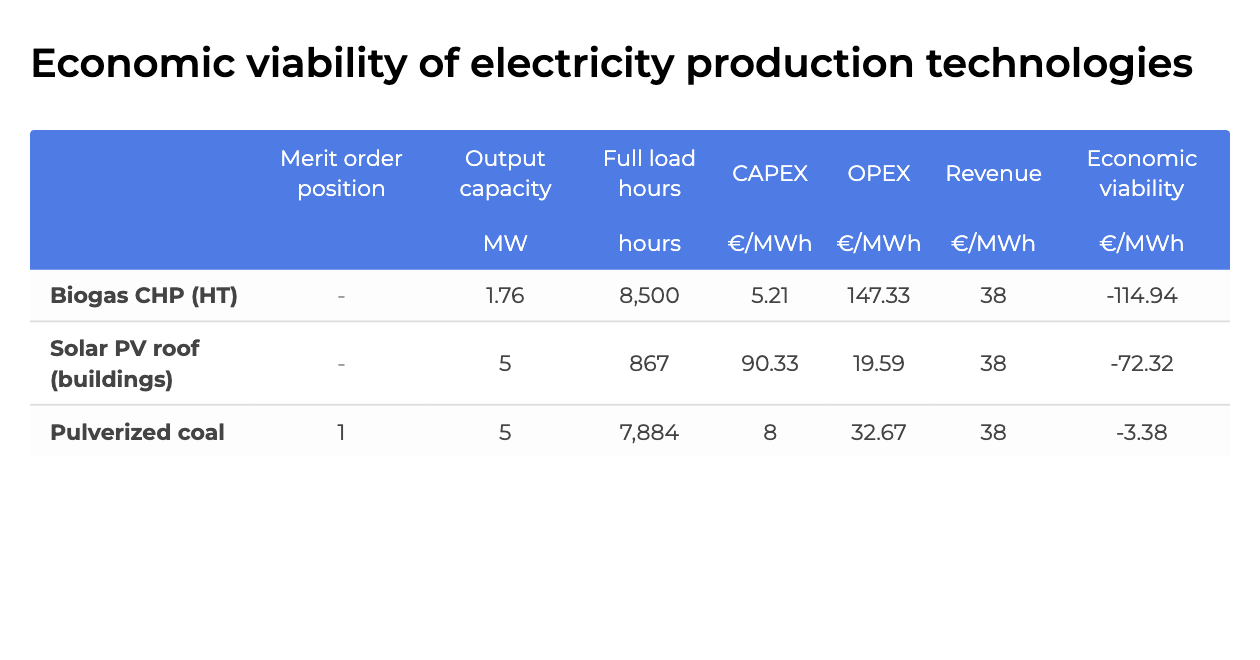

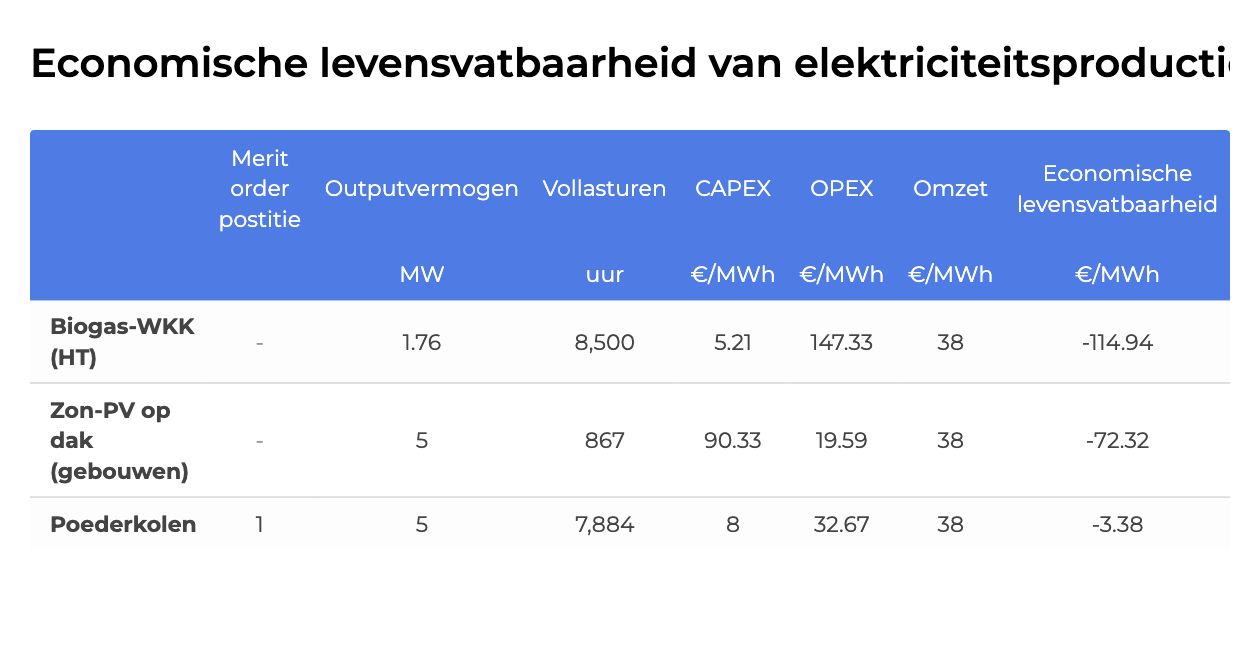

Costs: update of charts and data export
The ETM contains new cost charts with clear catogories. The method of cost calculation has also been updated. The ETM now explicitly calculates CAPEX, OPEX and fuel costs. For all technologies these can be exported in the data export section of the ETM. For more details about cost calculations see the documentation.
Explore price-sensitive electricity demand
Previously, the use of flexible electricity demand technologies could be determined by manually setting the order in which these technologies could use electricity. This has now been replaced by price-sensitive behaviour. This means that for power-to-gas, power-to-heat and electricity storage a willingness to pay has to be set. For export, the willingness to pay is given by the prices of the interconnectors.
The behaviour for all of these technologies can be set in the Flexibility section, for Storage, Conversion and Export. New charts that can help you set the behaviour can also be found there. For storage, in addition to the willingness to pay, a willingness to accept has to be set. Alternatively, instead of the price-sensitive behaviour, a forecasting algorithm can be used to determine storage behaviour.
If it is profitable, power plants will now supply these flexible demand technologies. For example, depending on the prices, a nuclear power plant could be used to produce hydrogen through power-to-gas. This also means that power plants will produce for export when it is profitable.
Important: for scenarios that have been made before this update and in which the flexibility merit order was manually set, the willingness to pay of each technology is updated to replicate this set merit order. Please note that the impact of this model update can still be significant for existing scenarios, because the prices of the interconnectors have not been adjusted for export and import.
New EU countries can be selected for your scenarios
We are proud to share that most EU countries are now available in the ETM. The most recent data from 2019 was used to create the datasets. You can now discover the differences in energy production and consumption between France and Hungary or create a scenario for Germany.
Choose from additional steel production technologies
The Energy Transition Model has been updated with the latest insights in steel industry production technologies. The model now includes the upcoming production technology Direct Reduction of Iron (DRI), where you can choose between hydrogen or natural gas, and improvements in the existing production technologies. These new production technologies can be found in Demand → Industry → Steel.
In addition, it is now possible to choose what coal gas in the steel sector will be used for using the new sliders in Emissions → CCUS → Coal gases from blast furnaces (steel). Coal gas can either be used for electricity production or for transformation into chemical feedstock.
Innovative flexible technologies
A number of innovative technologies have been added to the ETM and can now be explored. These technologies are all aimed at improving the flexibility of the electricity system.
First, it is possible to install inland wind turbines or solar PV plants that have an integrated battery system. By changing the capacity of the battery and the grid connection you can change the profile that is supplied to the grid. In the Supply section you can install these Wind turbines and Solar plants.
Second, a new type of electricity storage is available: flow batteries. The innovative aspect of these batteries is that their volume can be scaled independently, and for relatively low costs compared to other batteries. These batteries can be found in Flexibility → Electricity storage → Flow batteries.
Third, offshore solar PV plants have been added to the model. These plants float in the sea, which increases the potential installation area for solar power in a country. They can be found in Supply → Renewable electricity → Solar power.
Finally, new heat pump systems are added. These heat pumps draw higher temperature heat from a special type of solar panels, PVT panels, making them more efficient than many other heat pumps. The panels simultaneously produce electricity. You can install these heat pumps with PVT panels in Demand → Households → Space heating & hot water.
Start year 2019 new standard for scenarios for the Netherlands
The Energy Transition Model allows you to design your own energy system for a region of your choice, by making changes to its current energy system. For the Netherlands, we have now updated the start year representing the current energy system from 2015 to 2019. This means that when you open a new scenario for the Netherlands, you will see a representation of the energy system as it was in 2019, including the level of greenhouse gas emissions, the electricity production by energy source, the share of renewable energy etc.
Important: for scenarios that have been made before this update, with 2015 as a start year, nothing has changed. You can still access and edit any old scenario you saved under “My Scenarios”.
The basis of this dataset update is the open source energy balance from Eurostat, which is complemented by a number of other data sources, such as the CBS. All of the data sources we used to create the new dataset can be found in our documentation on Github. In addition, we have improved the process of updating our datasets, thereby increasing the quality of the new Dutch dataset and any future dataset updates.

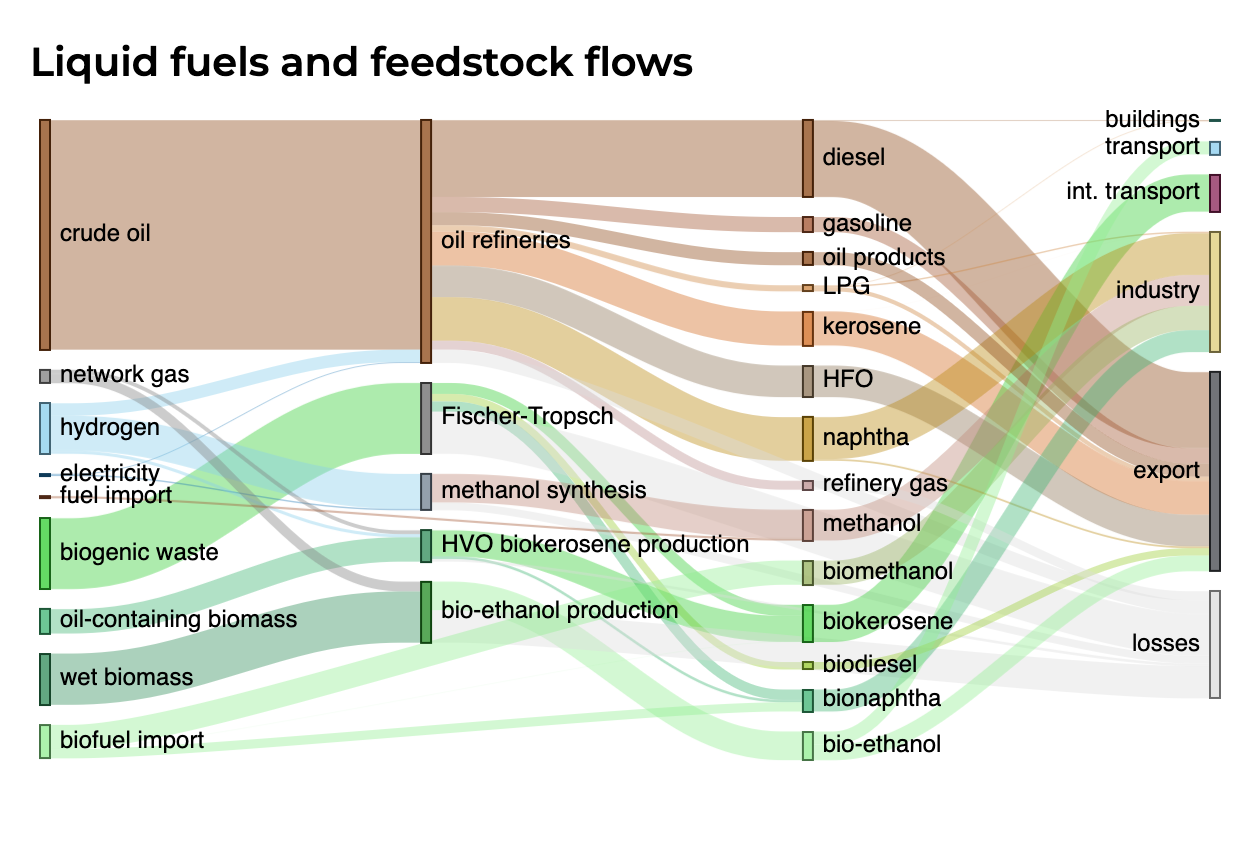

Determine the oil mix and add bio oil
It is now possible to determine the oil mix and add bio oils for households, buildings, industry and agriculture. You can do this under Supply → Biomass → Mix of oil and oil products.
Hydrogen trains are seen as an opportunity to replace diesel trains. You can now add hydrogen trains to your scenario by using the new slider in Demand → Transport → Passenger transport → Train technology.
CCS Waste incinerators
Even though waste incinerators are seen as renewable energy producers, they still emit greenhouse gases. With Carbon Capture and Storage (CCS) it is possible to prevent the emission of greenhouse gases, making waste incineration more climate friendly. You can now add CCS to waste incinerators in Emissions → CCUS → Capture of CO2.
Air heat pump buildings
Air heat pumps in buildings are used as a method to provide heating or cooling. Previously it was not possible to incorporate air heat pumps within buildings but with the addition of a heat pump slider in Demand → Buildings → Space heating & Cooling you can add them to your scenario.
Costs section restructured and new efficiency sliders
The ‘Costs’ section in the ETM has been restructured and new sliders were added describing the efficiencies of technologies. This means you can now adjust the efficiencies of most technologies within the ETM. You can find the efficiency sliders under Electricity, Renewable electricity and Heat. The ‘Costs’ sidebar item has been renamed to ‘Costs & efficiencies’.
Condensing combi boiler (hydrogen) added for households and buildings
It is now possible to add condensing combi boilers on hydrogen for space heating and hot water to your scenario. Go to Demand → Households → Space heating & hot water to adjust the slider.

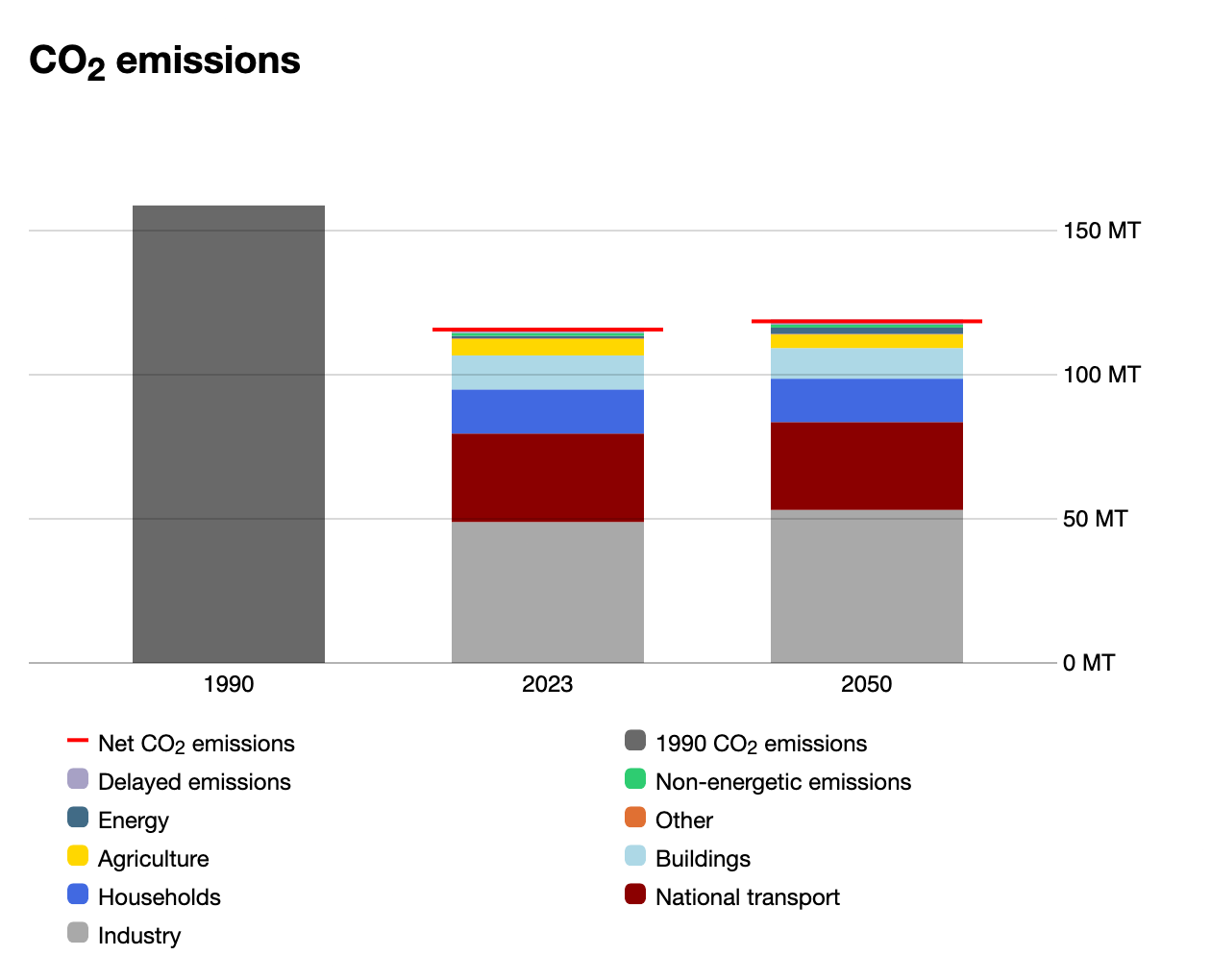

New Greenhouse gases section
An Emissions item has been added to the sidebar consisting of the existing ‘CCUS’ section and a new ‘Greenhouse gases’ section. In the new Greenhouse gases section you can view and make assumptions about non-energetic CO2 emissions and other greenhouse gases. All energetic CO2emissions are automatically calculated in the ETM based on the energy system. By adding non-energetic CO2 emissions and other greenhouse gases to the ETM you can now get an overview of all emissions in your area. These emissions are now also included in the updated Greenhouse gas footprint.
Greenhouse gas footprint update
The emissions that were added to the new emissions section have also been added to the Greenhouse gas footprint. This means that the footprint now gives an overview of all emissions within your area.
Regional source data available in ETM Dataset Manager
When you start a new scenario in the Energy Transition Model, source data for the present year is loaded into the model. This data represents the current state of the energy system of the region that you have selected. This present state is used as the basis for modelling your future scenario and is unique for every region.
To increase transparency, we have developed an online and version-controlled environment for the documentation of the regional source data: the ETM Dataset Manager. It gives a complete and structured overview of all data and sources used for the regions. At the moment, mostly regions within countries are included; in the long run all countries will also become available through the ETM Dataset Manager.
In the ETM we have added a button directing you to the selected region in the ETM Dataset Manager to view the source data, which may be found in Results & data → Source data.
New chart showing the provision of flexibility
We have added a new chart showing the installed capacity of flexible supply and demand technologies; for example power-to-gas electrolyzers or gas power plants. Comparing those capacities to the maximum shortage and excess peak can help you determine whether you have installed enough flexible capacity to balance your energy system.
The chart can be found in Flexibility → Overview where we have also updated the explanations accompanying the other charts in this section. We now discuss the inflexible demand and supply and the residual load curves in more detail.
New chart showing the stored volume of electricity
A relevant performance metric for electricity storage technologies is the extent to which they are utilised. We have visualised the charging and discharging behaviour of these technologies in a new chart which shows the hourly stored volume of electricity.
You can find the chart in Flexibility → Excess electricity → Storage. You can choose to view all of the electricity storage technologies at once, or just one of…
- Batteries in households
- Batteries in electric vehicles
- Large-scale batteries
- Underground pumped hydro storage
- Reservoirs (depending on the selected region)
New charts showing the need for flexibility
Natural patterns like seasons (yearly), the variations in weather (weekly), day and night and our rhythm of waking up, going to work, coming home, etc. cause both the need for energy and the availability of energy to fluctuate. Flexibility is about balancing energy supply and demand on all these timescales.
We have added the section Flexibility → Overview to the ETM with four interactive charts in which you can see how supply and demand compare on various timescales. These charts show:
- Monthly supply and demand volumes
- Imbalance of monthly supply and demand volumes
- The need for flexibility: volume
- The need for flexibility: capacity
A detailed explanation can be found in the documentation.
The ETM calculates the hourly production and demand of gas, electricity, heat, and hydrogen. It is now also possible to upload and work with your own curves in the Flexibility → Modify Profiles section. There are three types of profiles you can modify:
- Demand profiles (e.g. electric buses, industrial heating)
- Production profiles (e.g. solar PV, wind offshore)
- Price curves (e.g. for power interconnectors)
The chart on the right shows all profiles which you may customise. If you upload a custom profile this is directly reflected in the chart.
Check out the Curves documentation for more information.
Download charts as images
Need to use a chart in a report, or want to share it with colleagues? All charts in the model can now be downloaded as a high-resolution image by clicking the button just above the chart.
Carbon capture, utilisation and storage (CCUS)
Carbon capture, utilisation and storage (CCUS) is a group of emissions reduction technologies that can be applied across the energy system. The ETM now takes into account CCUS applications in much more detail than before.
The ETM models four types of carbon capture:
- Capture in industry. A distinction is now made between various sub sectors and production technologies and their respective capture potentials, costs and energy requirements.
- Capture in the power sector
- Capture for hydrogen production
- Direct Air Capture, a process of capturing CO2 directly from the ambient air using electricity.
The ETM models four types of carbon usage:
- Offshore storage
- Utilisation of CO2 as feedstock for synthetic kerosene production
- Utilisation of CO2 as feedstock for synthetic methanol production
- Other utilisation, such as propellant gas for beer and soda or for the cultivation of crops in greenhouses.
The ETM models two types of carbon transportation:
- Via pipelines
- Liquefied transport in ships
The ETM can now deal with so-called ‘negative’ CO2 emissions. Such emissions may arise when applying carbon capture to processes using biomass or when CO2 is captured directly from the ambient air using Direct Air Capture technology. See our documentation for more.
Scenario Navigation bar
A new scenario navigation bar has been added which shows the region and end year for your scenario; when you open one of your saved scenarios, the scenario name is also shown making it easier to have multiple scenarios open in different browser tabs. Quickly save your scenario with the “Save scenario” button on the right. It’s now easier to access all of your saved scenarios by visiting “My scenarios”.
Interaction possible with other models from the Mondaine Suite
Multiple energy models are used to explore different parts of the complex challenge of the energy transition. A collaboration between these models makes it possible to exploit the strengths of each individual model. In the context of the Mondaine project, the Energy System Description Language (ESDL) has been developed to support the communication between the different models - it allows the models to ‘speak’ the same language. ESDL can be used to describe information about spatial, technical, economical, social and temporal aspects of the energy transition, all in relation to each other. This makes it possible for a model to build further upon information from another model. The energy system defined in an ESDL file will be converted into slider settings - this makes it possible to explore the future energy system in the ETM and allows you to continue working on the scenario.
Check out the ESDL import functionality here!
Multiple electrical interconnectors
Many countries import and export electricity with their neighbors through different interconnectors, and the ETM used to model this with a single electricity interconnector. However, in the real-world countries often have multiple interconnectors with different neighbours, each with their own capacity, price, and availability.
The ETM now models up to six independent interconnectors, each of which have configurable capacity, CO2 emissions, and price. You may choose whether to export only excess electricity, or if dispatchable plants may also produce electricity destined for export. You can realistically model all electricity flows across the borders of your country, and see an overview of all these electricity flows in a new chart.
Discover this new functionality in the Flexibility → Import/Export section!
Heat demand curves for buildings and agriculture
The hourly heat demand curves in the buildings and agriculture sector are now temperature dependent. This means that the shape of the demand curves will change depending on the selected weather year. Previously, the ETM used static demand profiles for the buildings sector and a flat profile for agriculture. Both sectors now use the same profile, based on data from large gas consumers, which is generated dynamically using weather data. As a result, this profile is now also available for the weather years 1987, 1997, and 2004. Heat demand in buildings and agriculture responds to outdoor temperature fluctuations, just like households heating demand.
Get insight in the impact of the weather year selection on demand curves in the Flexibility → Weather conditions section!
Impact of outdoor temperature on yearly energy demand
The impact of a higher or lower average outdoor temperature has been revised. In addition to heating and cooling demand in households and buildings, changing outdoor temperature now also affects heating demand in the agriculture sector. Heating demand in all three sectors now is more sensitive to temperature changes; the impact of temperature on heat demand is based on research by the Dutch gas TSO. See our documentation page for more info. This improvement is relevant for both the temperature slider and the weather year selection.
Check out this improvement in the Flexibility → Weather conditions section!
Curtailment of solar panels
Installing a large capacity of solar PV panels may cause high peak demands on the electricity network. It is therefore desirable to be able to curtail these peaks. In some cases it might be smart to connect solar parks to a certain percentage of its peak power. It is now possible to set the curtailment as a percentage of the peak power in the ETM.
Discover the curtailment of solar panels in the Flexibility → Net load section!
Convert excess electricity into heat for district heating
It is now possible to convert electricity excesses from solar and wind production into heat for district heating. This can be done by means of a power-to-heat (P2H) electric boiler and a P2H heat pump that only produce heat when there is an excess of electricity. The produced heat can be used immediately or can be stored for later use. For example, it is now possible to use solar and wind electricity excesses to heat households during winter.
Check out the P2H sliders for district heating in the Flexibility → Excess electricity → Conversion section!
Get insight in behaviour of hybrid heat pumps
The efficiency of hybrid heat pumps (HHP) is dependent on the ambient temperature and is depicted by the coefficient of performance (COP). The COP becomes lower as the outside temperature decreases. In the ETM you can set the COP threshold above which the HHP switches from gas to electricity. You can choose a setting that is most financially attractive for the consumer, but you can also choose a setting that produces less impact on the electricity network. Two charts have been added to assist the user in making this choice: a chart showing the cost-optimal threshold COP based on the consumer gas/electricity price and a chart showing gas and electricity demand per hour.
Get insight in hybrid heat pump behavior in the Flexibility → Net load section!
Improved heating demand curves for households
The improved hourly heating demand curves used in the ETM better account for the concurrency of heating demand. The new curves are based on the average demand of 300 houses. Previously, demand curves were based on individual households which led to an overestimation of demand peaks.
Note: Because the heat demand peaks for households are lower, the results of your scenario might change. For example, when many houses are connected to district heating fewer back-up boilers may be required. If many houses have a heat pump installed, the peak load on the electricity grid will be reduced. If you are having trouble understanding the differences, don’t hesitate to email us.
Data export adjusted
In the data export, the hourly electricity curves for space heating in households have been broken down into series for individual heating technologies. This makes it possible to view the electricity hourly demand curve for air source heat pumps and other electric heating technologies.
January | February 2020
District heating improved and expanded
The modeling of district heating has been improved and expanded!
Heating networks in households, buildings, and agriculture have been merged into one network (“residential district heating”). It is no longer possible to exchange excess heat between industrial (steam) networks and residential networks.
The demand and production of heat for residential district heating is now calculated on a hourly basis instead of on an annual basis.
A distinction is made between “must-run” sources and “dispatchable” sources. Dispatchables only run if the must-runs do not produce enough to meet the demand. Their operating hours and profiles are therefore variable. Users can set which heaters start first
It is now possible to use large-scale solar thermal plants for residential district heating
Users can choose to turn seasonal heat storage ‘on’. In that case, overproduction of must-run sources is stored for later use instead of being dumped
Residual heat from the fertilizer, chemical, refining, and IT sectors can be used and fed into residential district heating networks. View our documentation on GitHub for the method and sources used
The cost calculation for heat infrastructure has been improved. Instead of calculating a fixed amount per connection, the costs are now subdivided into indoor costs, distribution costs (pipelines, substations) and primary network costs. The cost calculation has been aligned with the Vesta MAIS model, making comparisons and exchange of outcomes between the ETM and Vesta MAIS easier. View our documentation on GitHub for more information.
CHPs modeled differently
All CHPs (with the exception of biogas-CHP) now also work as dispatchable in the electricity merit order, including the industrial CHPs. CHPs are therefore now running primarily for the electricity market. Their heat production is therefore a “given” (must-run) for heat networks. Previously, CHPs were uncontrollable and ran with a fixed, flat production profile. This change may have an impact on your scenario outcomes!
Wind load curves improved
The wind load curves for the default dataset of the Netherlands are now created using the same (KNMI-based) method as used for the extreme weather years (1987, 1997, 2004). This ensures more consistency between the different datasets for the Netherlands. Check out our Github documentation for a more detailed explanation of this method.
Documentation more accessible
For certain sliders it was already possible to view the technical specifications so that you could see our assumptions. Now we go one step further and for many sliders we also make our entire background analysis available (which is already on GitHub) at the touch of a button. From the technical specifications table you can download this analysis directly as an Excel file.
Download slider settings
For saved scenarios it is possible to download the values of your sliders as a CSV file. This can be useful if you want to list all your scenario changes. View your saved scenarios via “User> My scenarios” (top right in the ETM) and click on the title of the desired scenario. Now enter ‘.csv’ after the url (so you get pro.energytransitionmodel.com/saved_scenarios/0000.csv) and the download starts immediately.
Data export adjusted
The format of the load and price curves of electricity has recently changed. For each column in the data export the extension “input” or “output” is used to indicate whether the data represents demand or supply of electricity. Flexibility solutions have two columns now, both for the electricity input and output. With these changes, the format of the data exports of electricity, network gas and hydrogen are more consistent.
You can find the adjusted data export here in the Data export → Merit order price section.
